مستنقع محرك علبة التروس
Created with Pixso. Single Axis Slew Drive Gearbox for Vertical Solar Tracking System

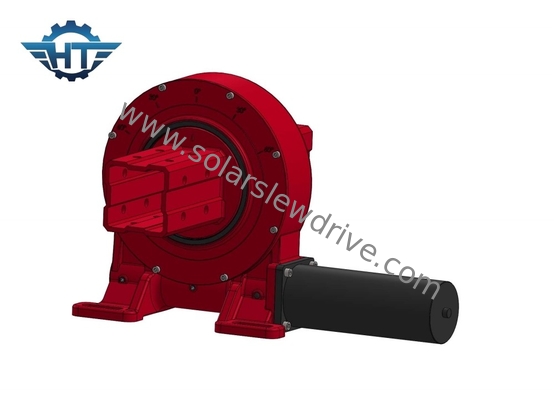

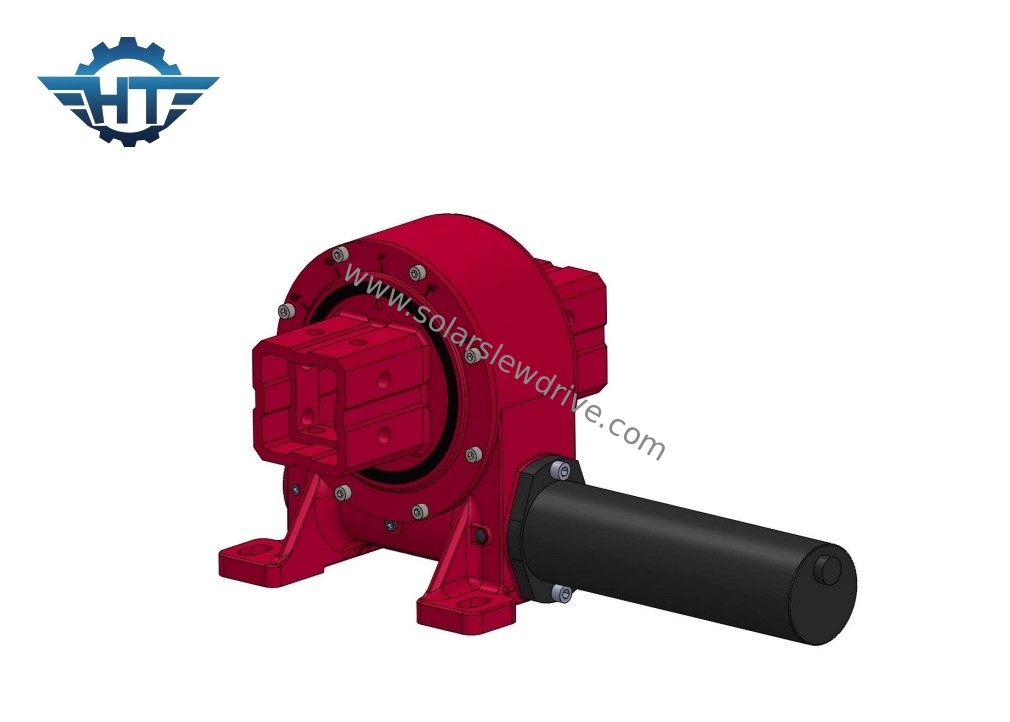

Single Axis Slew Drive Gearbox for Vertical Solar Tracking System

معلومات مفصلة
Self-Locking:
Yes
Tracking Precision:
0.01°
Static Axial Load:
200 kN
Tilting Moment Torque:
20000 Nm
Gear Type:
Slew Drive
Dynamic Radial Load:
50 kN
Slewing Speed:
0.2 rpm
Maximum Output Torque:
10000 Nm
إبراز:

solar tracker Slew Drive Gearbox

,

vertical Slew Drive Gearbox

,

solar tracker Slew Drive Gearbox single axis

وصف المنتج
Product Description: With a tilting moment torque of 20000 Nm, this single-axis drive is capable of handling heavy loads and providing smooth, efficient motion. Its compact design and low maintenance requirements make it an ideal choice for solar tracking applications. The worm slew drive gearbox is an essential component of any solar tracker system, providing the necessary power and precision to ensure accurate tracking of the sun throughout the day. Its durable construction
